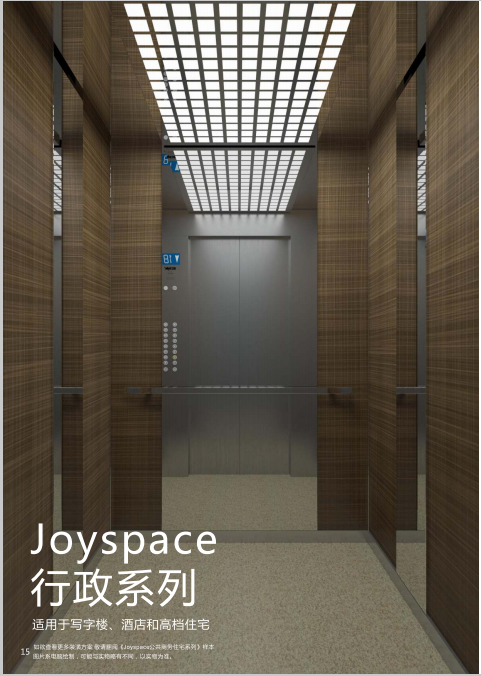

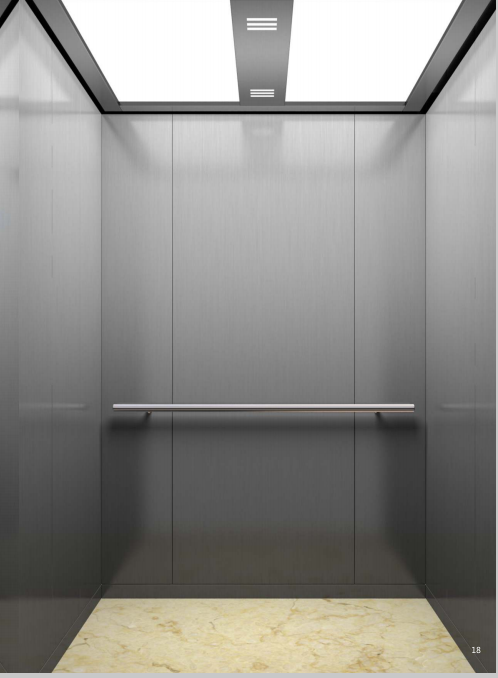

Passenger elevator

Passenger elevator

Passenger Elevator parameters (machine room)

Load
(Kg)		 Speed
(m/s)		 Pers Car Size (mm)
CW×CD×HK		 Opening Size(mm)
PL×LH		 Shaft Size(mm)
SW×SD		 Machine Room Size(mm)
W×D		 Overhead Hight H2
mm		 Pit Depth H1
mm		 Travelling Height H
mm
450 1 6 1250×1000×2400 700×2100 1750×1650 1900×2100 4300 1500 50
450 1.5 6 1250×1000×2400 700×2100 1750×1650 1900×2100 4400 1500 75
450 1.75 6 1250×1000×2400 700×2100 1750×1650 1900×2100 4400 1500 85
630 1 8 1100×1400×2400 800×2100 1800×2100 1900×2100 4300 1500 50
630 1.5 8 1100×1400×2400 800×2100 1800×2100 1900×2100 4400 1500 75
630 1.75 8 1100×1400×2400 800×2100 1800×2100 1900×2100 4400 1500 85
800 1 10 1350×1400×2400 800×2100 1900×2100 1900×2100 4300 1500 50
800 1.5 10 1350×1400×2400 800×2100 1900×2100 1900×2100 4400 1500 75
800 1.75 10 1350×1400×2400 800×2100 1900×2100 1900×2100 4400 1500 85
1000 1 13 1600×1400×2400 900×2100 2150×2100 2150×2100 4300 1500 50
1000 1.5 13 1600×1400×2400 900×2100 2150×2100 2150×2100 4400 1500 75
1000 1.75 13 1600×1400×2400 900×2100 2150×2100 2150×2100 4400 1500 85
1000 2 13 1600×1400×2400 900×2100 2150×2100 2150×3150 4600 1700 100
1000 2.5 13 1600×1400×2400 900×2100 2150×2100 2150×3150 4800 1800 125
1250 1 16 1950×1400×2400 1000×2100 2500×2100 2500×2100 4300 1500 50
1250 1.5 16 1950×1400×2400 1000×2100 2500×2100 2500×2100 4400 1500 75
1250 1.75 16 1950×1400×2400 1000×2100 2500×2100 2500×2100 4400 1500 85
1250 2 16 1950×1400×2400 1000×2100 2500×2100 2500×3150 4600 1700 100
1250 2.5 16 1950×1400×2400 1000×2100 2500×2100 2500×3150 4800 1800 125
1600 1 21 1950×1700×2400 1100×2100 2800×2200 2800×2200 4400 1500 50
1600 1.5 21 1950×1700×2400 1100×2100 2800×2200 2800×2200 4500 1600 75
1600 1.75 21 1950×1700×2400 1100×2100 2800×2200 2800×2200 4500 1600 85
1600 2 21 1950×1700×2400 1100×2100 2500×2450 2500×3500 4600 1700 100
1600 2.5 21 1950×1700×2400 1100×2100 2500×2450 2500×3500 4800 1800 125

Passenger Elevator parameters (machine room less)

Load
(Kg)		 Speed
(m/s)		 Pers Car Size (mm)
CW×CD×HK		 Opening Size(mm)
PL×LH		 Shaft Size(mm)
SW×SD		 Overhead Hight H2
mm		 Pit Depth H1
mm		 Travelling Height H
mm
630 1 8 1250×1300×2400 800×2100 2100×1800 4300 1600 50
630 1.5 8 1250×1300×2400 800×2100 2100×1800 4500 1600 75
630 1.75 8 1250×1300×2400 800×2100 2100×1800 4600 1600 85
800 1 10 1350×1400×2400 800×2100 2200×1900 4300 1600 50
800 1.5 10 1350×1400×2400 800×2100 2200×1900 4500 1600 75
800 1.75 10 1350×1400×2400 800×2100 2200×1900 4600 1600 85
1000 1 13 1600×1400×2400 900×2100 2450×1900 4300 1600 50
1000 1.5 13 1600×1400×2400 900×2100 2450×1900 4500 1600 75
1000 1.75 13 1600×1400×2400 900×2100 2450×1900 4600 1600 85
1250 1 16 1750×1600×2400 1000×2100 2700×2000 4450 1600 50
1250 1.5 16 1750×1600×2400 1000×2100 2700×2000 4650 1600 75
1250 1.75 16 1750×1600×2400 1000×2100 2700×2000 4750 1600 85
1600 1 21 1750×2000×2400 1000×2100 2700×2400 4500 1700 50
1600 1.5 21 1750×2000×2400 1000×2100 2700×2400 4850 1800 75
1600 1.75 21 1750×2000×2400 1000×2100 2700×2400 4900 1800 85

Layout Plan

Hospital elevator

Hospital elevator

Parameters

Load
(Kg)		 Speed
(m/s)		 Pers Car Size (mm)
CW×CD×HK		 Opening Size(mm)
PL×LH		 Shaft Size(mm)
SW×SD		 Machine Room Size(mm)
W×D		 Overhead Hight H2
(mm)		 Pit Depth H1
(mm)		 Travelling Height H
mm
1000 1 13 1100×2100×2400 900×2100 2100×2500 2100×2500 4300 1500 50
1000 1.5 13 1100×2100×2400 900×2100 2100×2500 2100×2500 4400 1500 75
1000 1.75 13 1100×2100×2400 900×2100 2100×2500 2100×2500 4400 1500 85
1600 1 21 1400×2400×2400 1100×2100 2300×2850 2300×2850 4300 1500 50
1600 1.5 21 1400×2400×2400 1100×2100 2300×2850 2300×2850 4500 1500 75
1600 1.75 21 1400×2400×2400 1100×2100 2300×2850 2300×2850 4500 1500 85
2000 1 26 1600×2600×2400 1200×2100 2500×3050 2500×3050 4300 1500 50

Layout plan

Sightseeing elevator

Sightseeing elevator

 Parameters

Load
(Kg)		 Speed
(m/s)		 Pers Car Size (mm)
CW×CD×HK		 Opening Size(mm)
PL×LH		 Shaft Size(mm)
SW×SD		 Overhead Hight H2
mm		 Pit Depth H1
mm		 Travelling Height H
mm
630 1 8 1250×1300×2400 800×2100 2100×1800 4300 1600 50
630 1.5 8 1250×1300×2400 800×2100 2100×1800 4500 1600 75
630 1.75 8 1250×1300×2400 800×2100 2100×1800 4600 1600 85
800 1 10 1350×1400×2400 800×2100 2200×1900 4300 1600 50
800 1.5 10 1350×1400×2400 800×2100 2200×1900 4500 1600 75
800 1.75 10 1350×1400×2400 800×2100 2200×1900 4600 1600 85
1000 1 13 1600×1400×2400 900×2100 2450×1900 4300 1600 50
1000 1.5 13 1600×1400×2400 900×2100 2450×1900 4500 1600 75
1000 1.75 13 1600×1400×2400 900×2100 2450×1900 4600 1600 85
1250 1 16 1750×1600×2400 1000×2100 2700×2000 4450 1600 50
1250 1.5 16 1750×1600×2400 1000×2100 2700×2000 4650 1600 75
1250 1.75 16 1750×1600×2400 1000×2100 2700×2000 4750 1600 85
1600 1 21 1750×2000×2400 1000×2100 2700×2400 4500 1700 50
1600 1.5 21 1750×2000×2400 1000×2100 2700×2400 4850 1800 75
1600 1.75 21 1750×2000×2400 1000×2100 2700×2400 4900 1800 85

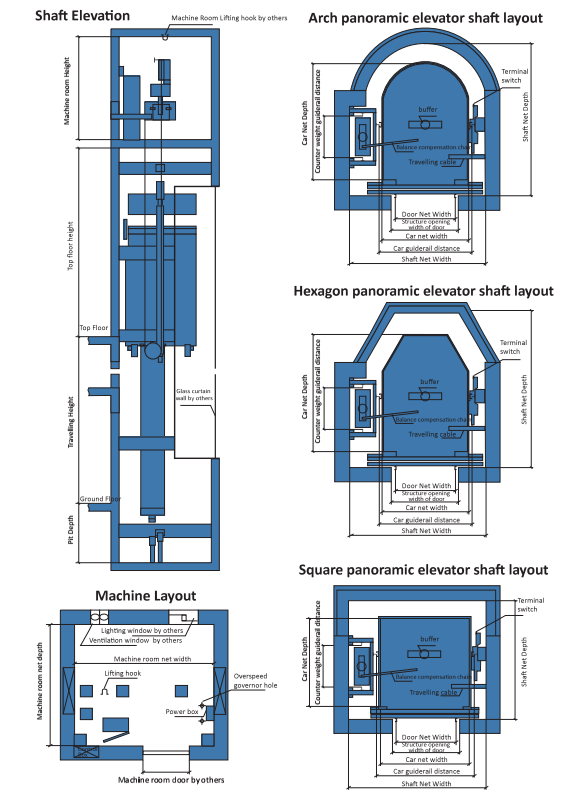

Layout Plan

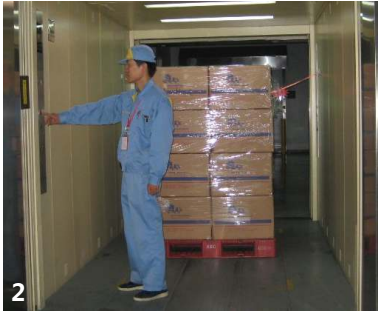

Freight elevator

Freight elevator

Parameters

Load
(Kg)		 Speed
(m/s)		 Car Size (mm)
CW×CD×HK		 Opening Size(mm)
PL×LH		 Opening Type Shaft Size(mm)
SW×SD		 Overhead Hight H2
(mm)		 Pit Depth H1
(mm)
1000 0.5 1400×1600×2200 1400×2200 Center opening Four Panels 2450×2000 4200 1450
1000 0.5 1400×1600×2200 1400×2200 Four Panels Opposite Side 2450×2070 4200 1450
2000 0.5 1800×2300×2200 1800×2200 Center opening Four Panels 3000×2700 4200 1450
2000 0.5 1800×2300×2200 1800×2200 Four Panels Opposite Side 3000×2770 4200 1450
3000 0.5 2200×2600×2200 2200×2200 Center opening Four Panels 3600×3000 4200 1450
3000 0.5 2200×2600×2200 2200×2200 Four Panels Opposite Side 3600×3070 4200 1450
4000 0.5 2400×2900×2200 2400×2200 Center opening Four Panels 3800×3370 4200 1450
4000 0.5 2400×2900×2200 2400×2200 Four Panels Opposite Side 3800×3370 4200 1450
5000 0.5 2500×3500×2200 2400×2200 Center opening Four Panels 4000×4000 4200 1450
5000 0.5 2500×3500×2200 2400×2200 Four Panels Opposite Side 4000×3970 4200 1450

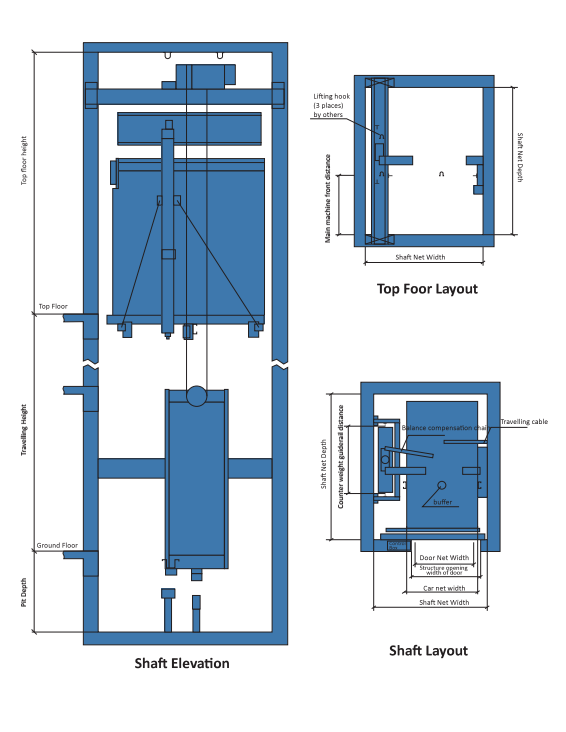

Layout Plan

Car elevator

car elevator

Parameters

Hydraulic Drive-TQY

Load

Speed

Car Size

Door Size

Shaft Size

Pit

Overhead

Machine-Room

Kg

M/s

mm

mm

mm

mm

mm

mm

W*D*H

W*H

W*D

W*D*H

2500

0.3

2400*5600*2200

2400*2200

4000*6200

1500

≥3800

1500

6200

2000

3000

0.3

2500*6000*2200

2500*2200

4200*6600

1500

≥4000

6600

5000

0.3

2700*6500*2200

2700*2200

4500*7100

1500

≥4000

7100

 Traction Drive-TQJ

Load

Speed

Car Size

Door Size

Shaft Size

Pit

Overhead

Machine-Room

Kg

M/s

mm

mm

mm

mm

mm

mm

W*D*H

W*H

W*D

W*D*H

2500

0.5

2400*5600*2200

2400*2200

4000*6200

1500

≥4500

4000*6200*2500

3000

0.5

2500*6000*2200

2500*2200

4200*6600

1500

≥4500

4200*6600*2500

5000

0.25-0.5

2700*6500*2200

2700*2200

4500*7100

1500

≥4500

4500*7100*2500

Home lift

Home lift

parameters

Load
(Kg)		 Speed
m/s		 Pers Car Size (mm)
CW×CD×HK		 Opening Size(mm)
PL×LH		 Shaft Size(mm)
SW×SD		 Overhead Hight H2
(mm)		 Pit Depth H1
(mm)		 Travelling Height H
(mm)
320 0.4 4 900×1200×2150 700×2000 1600×1500 3300 900 12
320 0.4 4 900×1200×2150 800×2000 1600×1550 3300 900 12
400 0.4 5 900×1200×2150 700×2000 1600×1500 3300 900 12
400 0.4 5 900×1200×2150 800×2000 1600×1550 3300 900 12

Layout Plan
